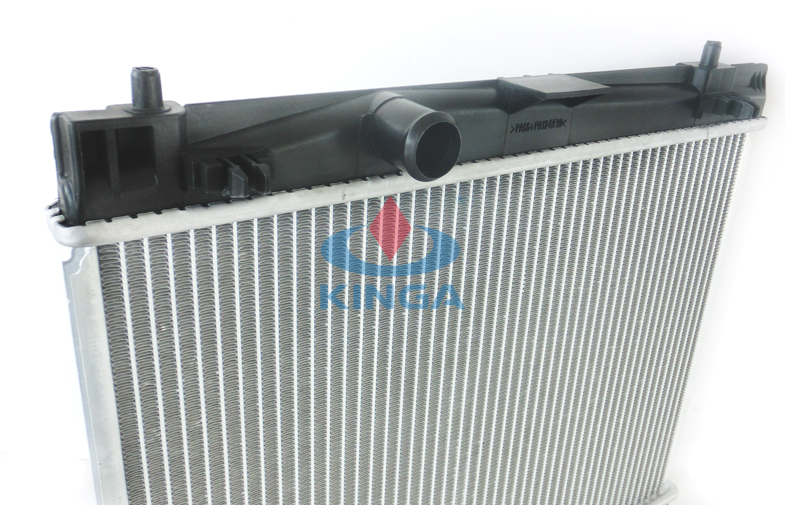

OEM 16400-21300 Automobile Radiator For Toyota VITZ ' 05 NCP95 / NCP105 AT
Our Services
1. High Quality
For auto radiator, we all is using high quality materials, we have advanced production equipment,
strict requirements for production process, and perfect control, so the finished product is very good.
2. Competitive Price
We have many excellent longterm cooperation suppliers to provide us with alumium material and some other parts, which not also high quality, but also good price, so the price of our radiator is very competitive.
3. Perfect After-sale Service
According to our company's rule, we support oneyear quality guarantee after you receive the goods.
During this time, if you meet any quality problem, please contact with us, we can provide you with an replacement. The premise is non-human damage.

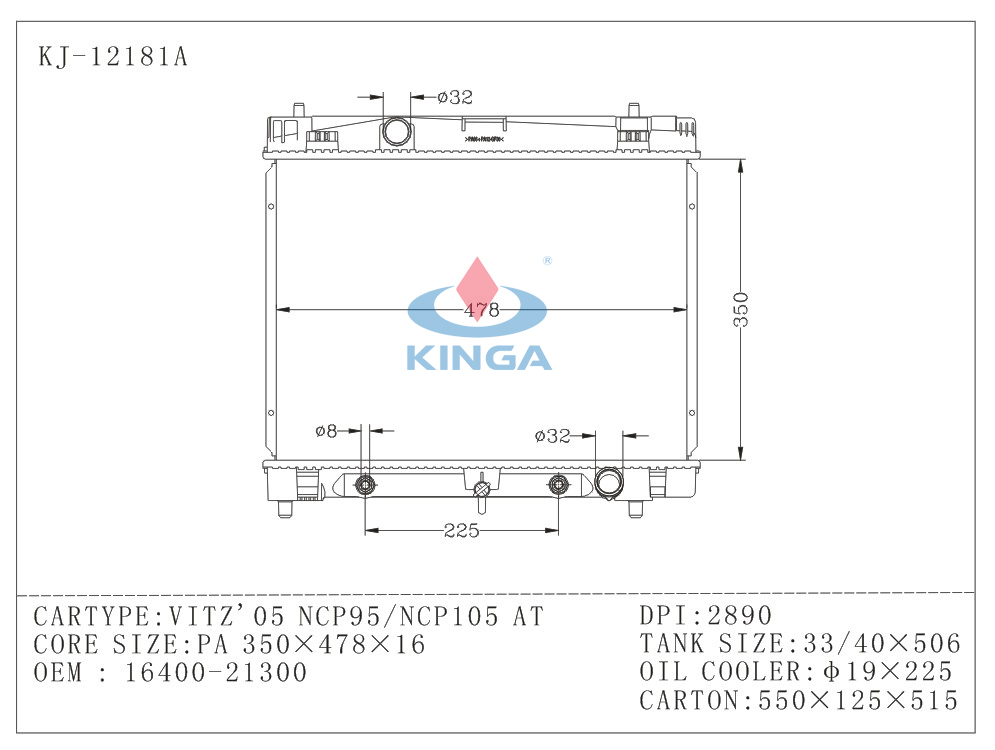

Product Specifications
| Transmission | Automatic Transmission |
| OEM | 16400-21300 |
| Car Type | VITZ'05 NCP95/NCP105 |
| Carton Size | 550 * 125 * 515 mm |
| Oil cooler | Φ 19 * 225 mm |
| Manufacturer Part Number | KJ-12181A |
| Thickness | 16 mm |
| Core Size | 350 * 478 * 16 mm |
| Tank Size | 33 / 40 * 506 mm |
| DPI | 2890 |
| Core Material | Aluminum |
| Tank Material | Plastic |
More Information
| KJ-12039-PA16 | CAMRY'03 MCV30 3.0 | PA16/AT |
| KJ-12039-PA26 | CAMRY'03 MCV30 3.0 | PA26/AT |
| KJ-12040-PA16 | CAMRY'03 MCV30 3.0 | PA16/MT |
| KJ-12040-PA26 | CAMRY'03 MCV30 3.0 | PA26/MT |
Structure Chart
| Brazed Radiator Structure |
| 1. Filler Neck | 8. Side Plate | 15. KINGA Logo |
| 2. Top Header Plate | 9. Core Height | 16. Bottom Header Plate |
| 3. Inlet Pipe | 10. Fin | 17. Water switch |
| 4. Top Tank | 11. Tube | 18. Bottom Tank |
| 5. Top Mounting Pins | 12. Core Width | 19. Oil Cooler |
| 6. Fan Mount | 13. Core Thickness | 20. Outlet Pipe |
| 7. Overflow Pipe | 14. Clip | |
Packing
Packaging design according to customer requirements.
NOTICE
1. Compare your radiator to the picture below
2. Flush the entire cooling system of the vehicle.
3. Use the astm-approved antifreeze and distilled or de-ionized water.
